Outdoor LED screens are transforming the way brands and organizations connect with audiences. From advertising to live events, these screens offer unparalleled visibility. However, outdoor environments bring unique challenges, making it essential to understand IP ratings, brightness, and weatherproofing.
In this article, we'll explore these crucial factors. You’ll learn how to select the right specifications for your LED screen and ensure its reliable performance in any outdoor setting.
An IP (Ingress Protection) rating is a standard used to define the level of protection provided by enclosures for electrical equipment. This system is widely used for determining how resistant a product is to solid particles (like dust) and liquids (like water). An IP rating typically consists of two digits:
● First digit: Indicates protection against solid particles.
● Second digit: Indicates protection against liquids.
For example, an IP65 rating means the equipment is fully protected from dust (6) and protected from water jets (5). This standard is crucial for ensuring the longevity and reliability of LED screens exposed to harsh environments.
Outdoor LED screens are exposed to the elements, meaning they must be durable enough to withstand rain, dust, and even physical damage. Without a proper IP rating, a screen could malfunction or degrade quickly when exposed to these environmental factors. The IP rating helps you assess how well a screen can handle these conditions:
● Dust: Dust accumulation can block vents and damage the internal components of the display, affecting its performance.
● Water: Rain or accidental water splashes can lead to short circuits or damage to sensitive electronic parts.
● Physical Damage: Protection against mechanical intrusion or accidental contact is vital in high-traffic areas.
Outdoor LED screens typically require higher IP ratings due to the nature of their environment. Here are some common IP ratings and their applications:
● IP65: Protection from dust and water jets from any direction. Suitable for most outdoor environments with minimal exposure to heavy rain or high-pressure water.
● IP66: Enhanced water resistance. Often used for screens in exposed outdoor areas, such as on billboards or near water features.
● IP67: Temporary immersion up to 1 meter. Ideal for locations that experience heavy rain or floods.
● IP68: Full immersion under water. Best for screens in areas with high moisture or in marine environments.
IP Rating | Protection Against Dust | Protection Against Water | Common Use Cases |
IP65 | Dust-tight | Low-pressure water jets | Outdoor advertising, retail |
IP66 | Dust-tight | Powerful water jets | Sports venues, outdoor events |
IP67 | Dust-tight | Immersion up to 1m | Harsh weather areas, marine environments |
IP68 | Dust-tight | Continuous immersion | Extreme outdoor conditions, submerged use |
Brightness is one of the most important factors when choosing an outdoor LED screen. Unlike indoor screens, which operate in controlled environments with consistent lighting, outdoor screens must be visible even under direct sunlight. If the brightness is insufficient, the display will be hard to see, making it ineffective for advertising or other applications.
Brightness in LED screens is measured in nits, which quantify the amount of light emitted per unit area. For outdoor environments, screens need higher brightness levels to stand out against the surrounding light.
Outdoor LED screens require varying brightness levels depending on the application:
● Outdoor Advertising: For clear visibility even in direct sunlight, outdoor advertising screens should have a brightness of 4000-6000 nits.
● Sports Events: Screens used in sports stadiums need bright displays to ensure clarity across large distances and in varied lighting conditions. Brightness should range between 5000-8000 nits.
● Concerts and Festivals: For entertainment events, 5000-7000 nits is ideal, allowing the visuals to be vibrant without causing glare.
● Transportation: In transportation hubs like airports or bus stations, 2000-4000 nits is sufficient to ensure legibility without overpowering the space.
Higher brightness not only improves visibility but also enhances image clarity. Outdoor LED screens with adequate brightness levels ensure that the display is clear, vibrant, and easy to read, even when viewed from a distance or in environments with fluctuating light levels. It also prevents the screen from being washed out or becoming unreadable in the presence of direct sunlight.
Weatherproofing involves the use of materials and designs that protect LED screens from environmental factors like moisture, extreme temperatures, and physical damage. Since outdoor screens are exposed to the elements, robust weatherproofing ensures they remain functional and maintain their visual integrity over time.
Weatherproofing is particularly important for outdoor LED screens because they are often subject to extreme weather conditions, including heavy rain, snow, wind, and sunlight. A well-designed screen should be able to function optimally under these conditions, without degradation in performance.
To ensure an LED screen is weatherproof, manufacturers use advanced materials and sealing techniques:

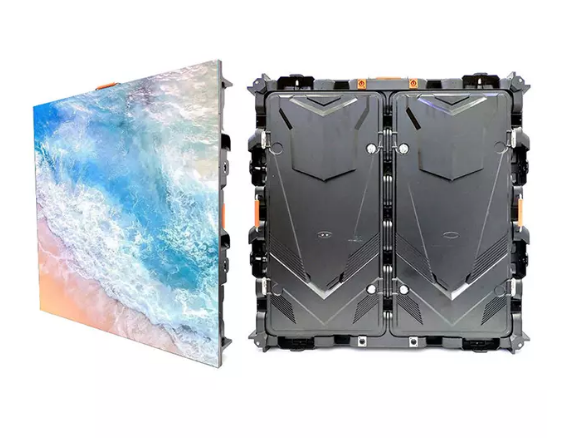

● Die-Cast Aluminum Cabinets: These provide lightweight yet strong protection against physical damage and moisture. They are typically used in IP65 to IP68-rated screens.
● Magnesium Alloy: Known for superior corrosion resistance, magnesium alloy is ideal for high-humidity environments.
● Sealing Structures: Waterproof adhesive and silicone sealing strips are used to prevent water ingress and protect internal components from moisture.
● Three-Proof Paint: A special coating is applied to the circuit boards to protect against moisture and salt corrosion, enhancing the screen's durability.
Weatherproofing adds to the cost of outdoor LED screens. High-quality screens with advanced weatherproofing materials, like magnesium alloy and die-cast aluminum, are more expensive. However, this investment is worthwhile for ensuring the longevity and reliability of the display. Without proper weatherproofing, screens may need frequent repairs or replacements, ultimately raising long-term costs.
When choosing the right IP rating for an outdoor LED screen, it’s essential to assess the environment where the screen will be placed. For public spaces such as outdoor advertising in busy, high-traffic areas, an IP65 or IP66 rating is usually adequate to protect the screen from dust and moderate water exposure. In sports venues, where the display is exposed to harsh weather conditions, including heavy rain and dust, a more robust IP67 or IP68 rating is recommended to safeguard against water immersion and dust. For transportation hubs like bus stations or airports, where the screen faces high environmental exposure, an IP65 or IP67 rating would be appropriate to ensure reliable performance under varying weather conditions.
When selecting an IP rating for your outdoor LED screen, there are several key factors to keep in mind. First, climate plays a crucial role—areas with heavy rainfall or high humidity may require higher IP ratings, such as IP67 or IP68, to ensure the screen remains functional in wet conditions. Additionally, consider the physical exposure of the screen. If the location is prone to dust storms or heavy foot traffic, a higher IP rating that protects against dust and debris is essential to maintain the screen's performance. Lastly, maintenance and longevity are important considerations; opting for a higher IP rating can reduce the frequency of repairs and replacements, ultimately extending the lifespan of the screen and making it a more cost-effective long-term investment.
● IP65: Perfect for outdoor advertising in areas where the screen is exposed to dust and rain but not to extreme conditions.
● IP67: Ideal for screens placed near water sources or areas prone to heavy rain, where immersion for short periods is possible.
● IP68: Best suited for harsh environments such as marine locations or areas with extreme weather conditions, offering full protection against immersion.
IP Rating | Protection Against Dust | Protection Against Water | Best Application |
IP65 | Dust-tight | Low-pressure water jets | Outdoor advertising, city billboards |
IP66 | Dust-tight | Powerful water jets | Sports arenas, large outdoor events |
IP67 | Dust-tight | Temporary immersion (up to 1m) | Harsh weather areas, outdoor public displays |
IP68 | Dust-tight | Continuous immersion | Marine, underwater or submerged locations |
IP ratings, brightness, and weatherproofing are all interconnected in ensuring an outdoor LED screen performs optimally. While IP ratings protect the screen from external elements like dust and water, brightness ensures visibility even in bright environments, and weatherproofing ensures the screen’s longevity and durability. All three factors must complement each other for the screen to function effectively across varying conditions.
A high IP rating ensures protection against dust and water, prolonging the screen’s lifespan. Brightness ensures that content is visible, even in challenging light conditions. Weatherproofing helps the display withstand the elements, reducing the risk of malfunction. When combined, these factors contribute to a low-maintenance, long-lasting, high-performance outdoor LED screen.
As technology continues to evolve, so does the performance of outdoor LED screens. Smart technology integration, AI-driven brightness adjustments, and improved weatherproofing materials are some of the innovations shaping the future of outdoor displays. These advancements will lead to more durable and efficient screens that can handle the most extreme environments while providing superior visuals.
Industries such as smart cities, retail, and live events are driving demand for advanced outdoor LED screens. These sectors require high-quality, weather-resistant displays that can deliver dynamic, real-time content. As a result, the focus will continue to be on developing more robust and energy-efficient LED screens to meet the growing demands of these applications.
In the future, we can expect further improvements in energy efficiency, sustainability, and environmental resistance. With the growing emphasis on green technologies, manufacturers will continue to innovate in ways that improve the durability, efficiency, and eco-friendliness of outdoor LED screens.
Understanding the importance of IP ratings, brightness, and weatherproofing is key when choosing an outdoor LED screen. These factors ensure optimal performance, durability, and vibrant visuals. By considering these elements, you can make a smart investment. At Guangzhou Zongheng Technology, we offer products that deliver exceptional performance, tailored to withstand outdoor challenges, ensuring long-term value for your business.
A: An IP rating indicates the level of protection a screen has against dust and water. For outdoor LED screens, higher ratings like IP65, IP67, or IP68 ensure durability in harsh weather.
A: Brightness is crucial for visibility, especially under direct sunlight. Outdoor LED screens need higher brightness levels, typically ranging from 4000 to 8000 nits, to remain clear and vibrant.
A: Weatherproofing protects outdoor LED screens from environmental factors like rain and dust, ensuring they last longer and perform reliably in all weather conditions.
A: For sports venues exposed to extreme weather, an IP67 or IP68 rating is ideal to protect against water immersion and dust while maintaining screen visibility.
A: Higher IP ratings ensure greater protection against environmental damage, reducing maintenance costs and increasing the screen's lifespan, making it a smart long-term investment.
